By-Pass Road Temporary Pavement Markings

About this detail

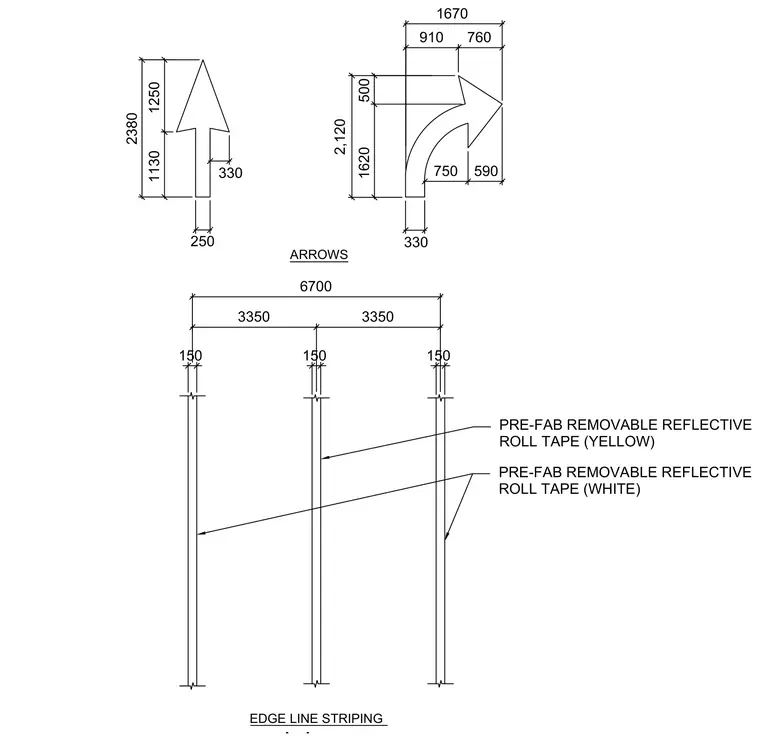

Temporary pavement markings detail showing dimensions and layout specifications for edge line striping and traffic arrows. The plan specifies pre-fabricated removable reflective roll tape in yellow and white, complete with dimensional layouts for straight and curved directional arrows. Pavement construction notes indicate matching existing thicknesses for base course, subbase course, and asphalt layers.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
