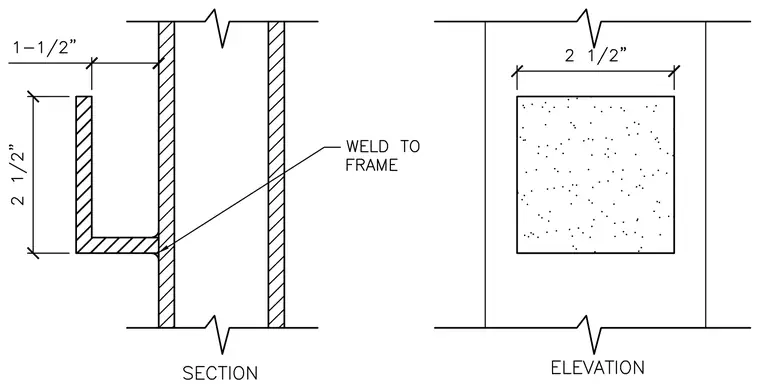

A latch catch is welded directly to the frame with a continuous weld indicated by a callout. The catch assembly features a height of 2 1/2 inches and is set back 1 1/2 inches from the face of the structural member, with the catch plate measuring 2 1/2 inches wide in elevation. The drawing provides section and elevation views detailing the physical dimensions and attachment method to the frame.
