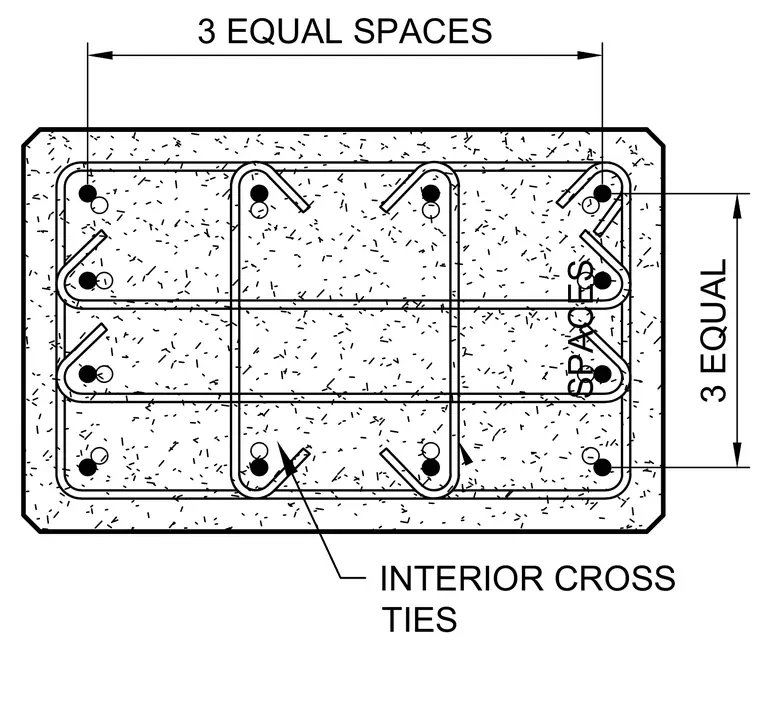

A rectangular reinforced concrete section features longitudinal reinforcement distributed around the perimeter and interior cross ties spaced equally across three dimensions. The tie configuration provides confinement and shear reinforcement for the structural member. Dimensions indicate three equal spaces horizontally and vertically for bar placement.
