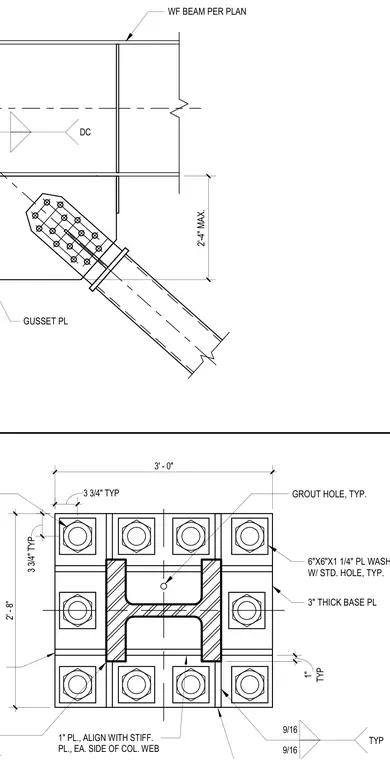

A buckling-restrained braced frame column base plate and gusset plate connection. The wide-flange column is supported by a three-inch thick base plate with typical plate washers measuring six inches by six inches by one-and-one-quarter inches with standard holes. A gusset plate connects to the wide-flange beam per plan with a maximum dimension of two feet four inches. One-inch stiffener plates align with each side of the column web. Grout holes are provided typically throughout the base assembly.
GUSSET PL WF BEAM PER PLAN DC 2'-4" MAX. 6"X6"X1 1/4" PL WASHER W/ STD. HOLE, TYP. GROUT HOLE, TYP. 9/16 9/16 TYP 1" PL., ALIGN WITH STIFF. PL., EA. SIDE OF COL. WEB 1" STIFF. PL. TYP. 3 3/4" TYP 3 3/4" TYP 3' - 0" 2' - 8" TYP 1" 3" THICK BASE PL
