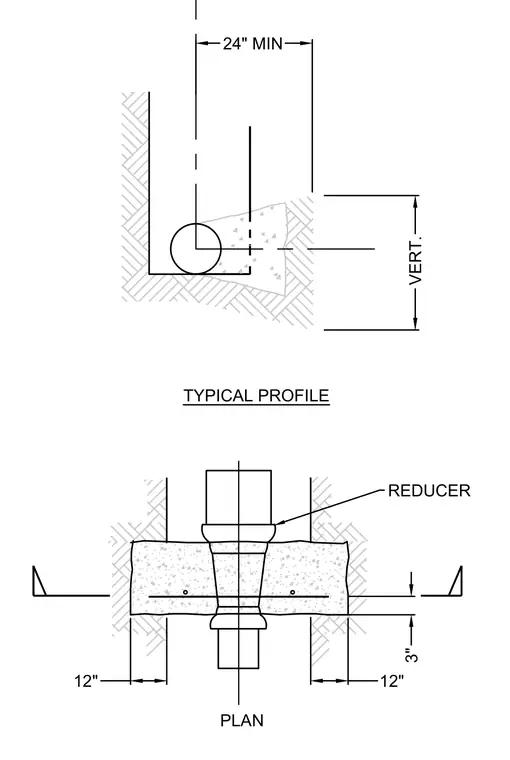

A typical profile and plan configuration for a pipe reducer embedded or enclosed within a concrete and earth structure. The reducer fitting transitions between different pipe diameters along a center alignment. Dimensions indicate a minimum 24-inch horizontal offset, vertical sizing, and 12-inch wall clearances alongside a 3-inch dimension indicator.
REDUCER TYPICAL PROFILE PLAN 24" MIN VERT. 12" 12" 3"
