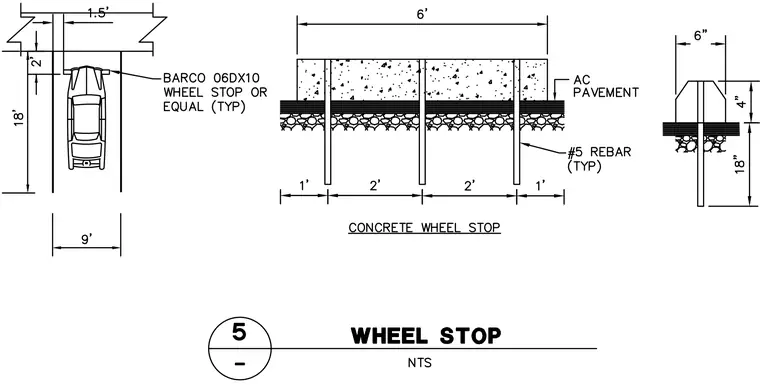

A six-foot precast concrete wheel stop or Barco 06DX10 wheel stop anchors into asphalt concrete pavement over a prepared base. The wheel stop measures four inches high by six inches wide and secures with three typical number five rebar dowels extending eighteen inches into the subgrade. The dowels space at two-foot intervals across the six-foot length with one-foot end clearances. The parking stall layout establishes a standard nine-foot-wide by eighteen-foot-long space with a one-and-a-half-foot clearance from the front edge.
