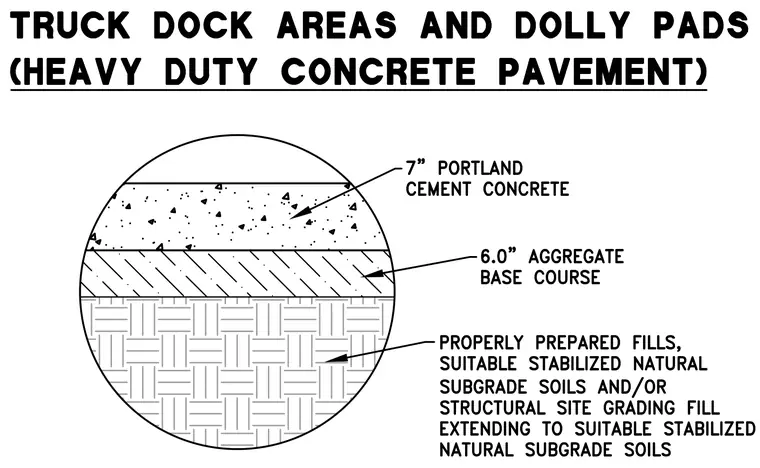

The pavement assembly consists of seven inches of portland cement concrete placed over six inches of aggregate base course. The base course rests on properly prepared fills, suitable stabilized natural subgrade soils, and/or structural site grading fill extending to suitable stabilized natural subgrade soils.
