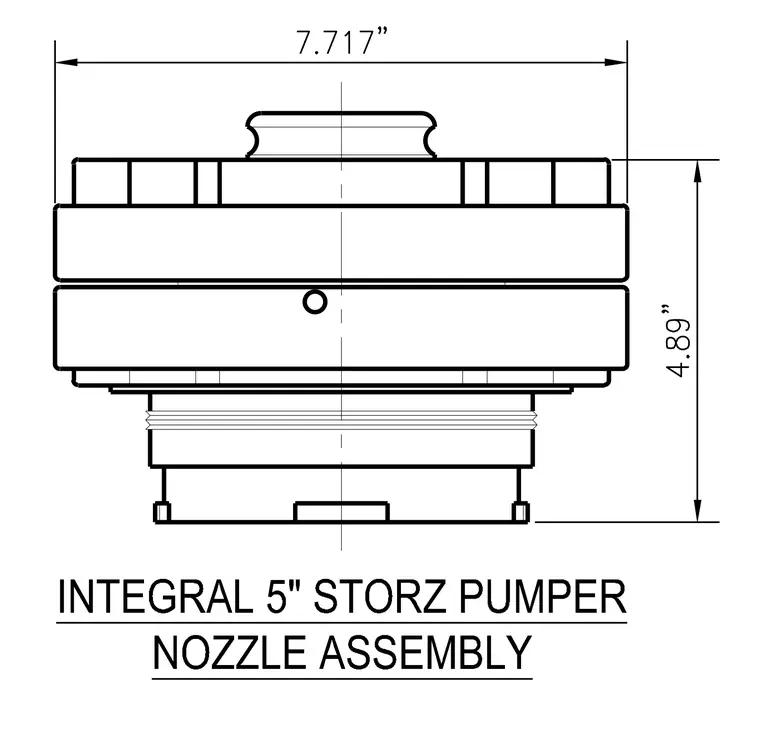

An integral 5-inch Storz pumper nozzle assembly configured for fire protection and water supply connections. The assembly features an overall width of 7.717 inches and a height of 4.89 inches.
