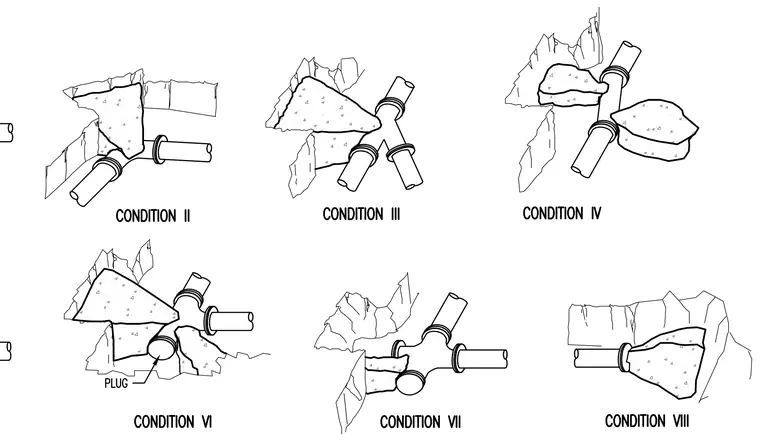

Concrete thrust blocks bear against undisturbed soil to restrain fitting movements in underground pressure piping networks. Various conditions illustrate proper bearing placement at tees, elbows, plugs, and crosses using poured-in-place concrete against trench excavation faces. Pipe joints feature mechanical restraints or gaskets adjacent to each restrained fitting.
