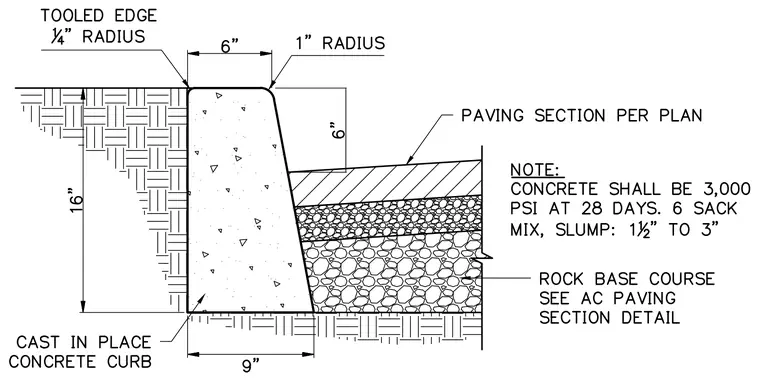

This cast-in-place concrete curb features a top width of six inches, a bottom width of nine inches, and an overall height of sixteen inches with a six-inch exposed height. The top outer edge includes a one-inch radius while the inner edge has a quarter-inch tooled radius. The concrete requires a minimum compressive strength of 3,000 pounds per square inch at twenty-eight days using a six-sack mix with a slump between one and one-half and three inches. The adjacent paving section and rock base course are installed per plan.
