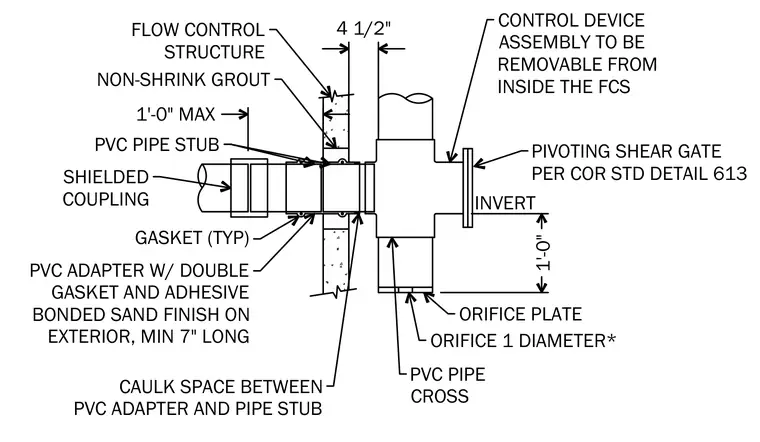

A PVC pipe stub penetrates the concrete wall of the flow control structure and is sealed with non-shrink grout. A shielded coupling connects the exterior pipe to a PVC adapter featuring a double gasket and adhesive bonded sand finish at least seven inches long. A caulk space is maintained between the PVC adapter and the pipe stub. Inside the structure, a PVC cross connects to the stub and houses an orifice plate at the invert along with a pivoting shear gate. The entire control device assembly is designed to be removable from inside the flow control structure.
FLOW CONTROL STRUCTURE NON-SHRIN . GROUT - 0AX 3VC 3I3E STU% SHIEL 'E' COU 3LING GAS .ET TY3 3VC A'A3TER W 'OU%LE GAS .ET AN' A'HESIVE %ON'E' SAN' FINISH ON EXTERIOR 0IN 7 LONG CAUL . S3ACE %ETWEEN 3VC A'A3TER AN' 3I3E STU% CONTROL 'EVICE ASSE 0%LY TO %E RE 0OVA%LE FRO0 INSI 'E THE FCS - INVERT 3VC 3I3E CROSS ORIFICE 'IA0ETER ORIFICE 3LATE 2 3IVOTING SHEAR GATE 3ER COR ST' 'ETAIL
