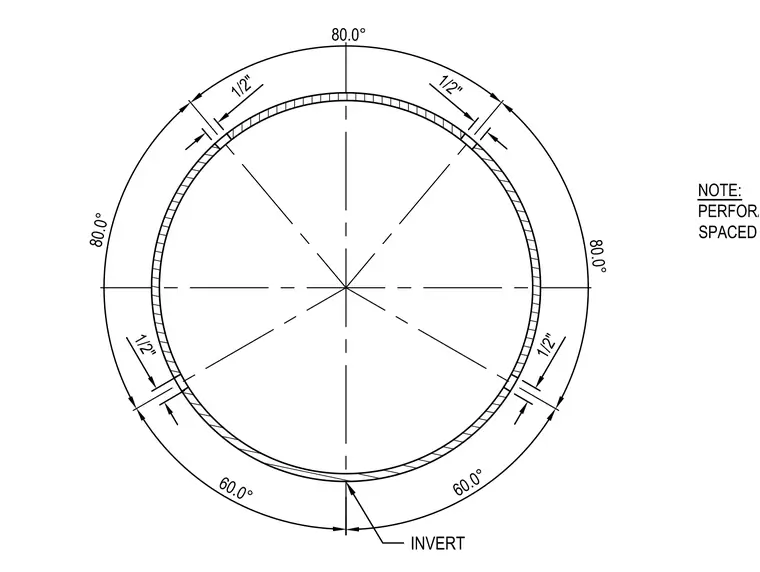

The pipe cross section features four distinct perforation zones, each measuring one-half inch in width. These zones are positioned at specific angular intervals around the pipe circumference, with two eighty-degree segments at the top and sides, and two sixty-degree segments flanking the invert. The invert is marked at the bottom center of the pipe profile. Perforations are spaced according to the specified angular layout to ensure proper drainage or collection performance.
