Structural · C-PS9PX

Bridge Ladder Brace Connection

Materials

Steel

Elements

Beams Bracing

Connections

Bracing Connection

About this detail

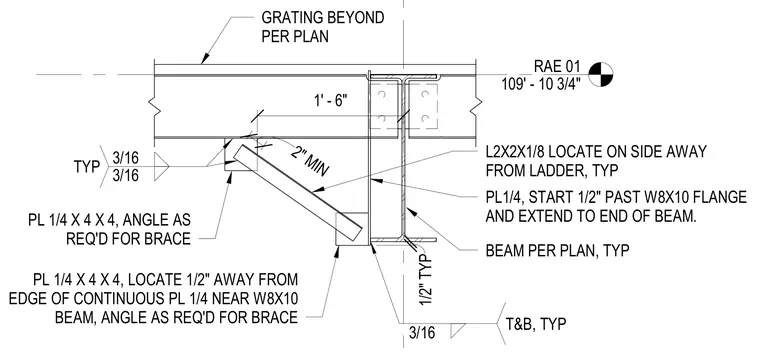

A structural steel ladder brace connects to a W8X10 beam using custom plates and angle sections. A continuous quarter-inch plate starts one-half inch past the W8X10 flange and extends to the end of the beam, welded top and bottom with three-sixteenth-inch fillet welds. Quarter-inch by four-inch by four-inch plates are located one-half inch away from the edge of the continuous plate near the beam, angled as required for the brace. An L2x2x1/8 angle is positioned on the side away from the ladder, with a two-inch minimum clearance. Grating extends overhead per plan.
