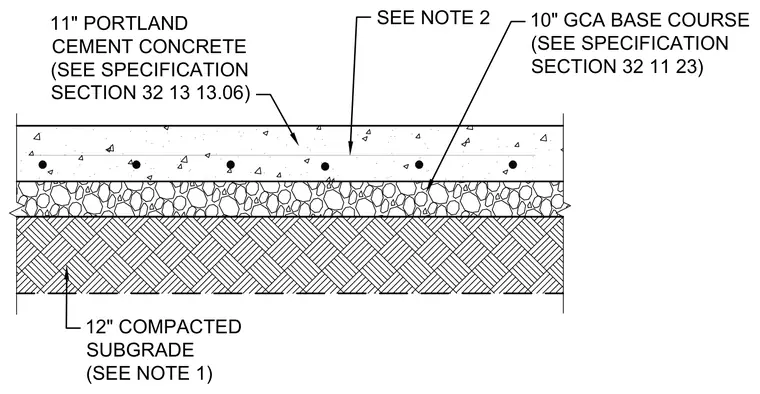

An eleven-inch Portland cement concrete slab rests on a ten-inch GCA base course, supported by a twelve-inch compacted subgrade. The concrete slab includes embedded reinforcement bars and references specific project specification sections for materials.
12" COMPACTED SUBGRADE (SEE NOTE 1) 11" PORTLAND CEMENT CONCRETE (SEE SPECIFICATION SECTION 32 13 13.06) 10" GCA BASE COURSE (SEE SPECIFICATION SECTION 32 11 23) SEE NOTE 2
