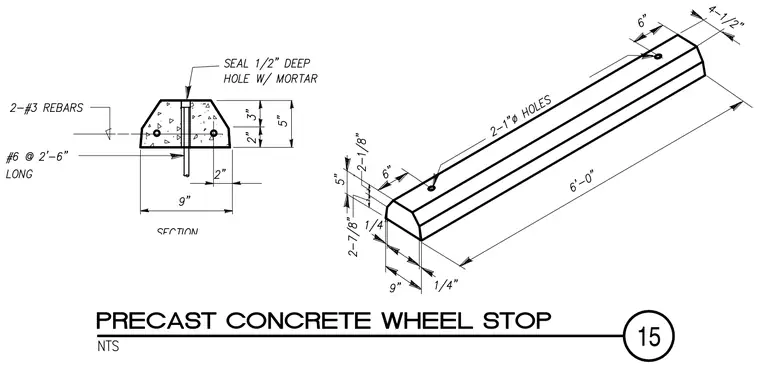

This precast concrete wheel stop is six feet long and nine inches wide, with a total height of five inches. The unit is reinforced with two number three reinforcing bars positioned two inches from the bottom. Two one-inch diameter holes are provided for anchorage, spaced six inches from each end. The installation requires a number six reinforcing bar, two feet six inches long, driven through the hole and sealed with mortar to a depth of one-half inch.
