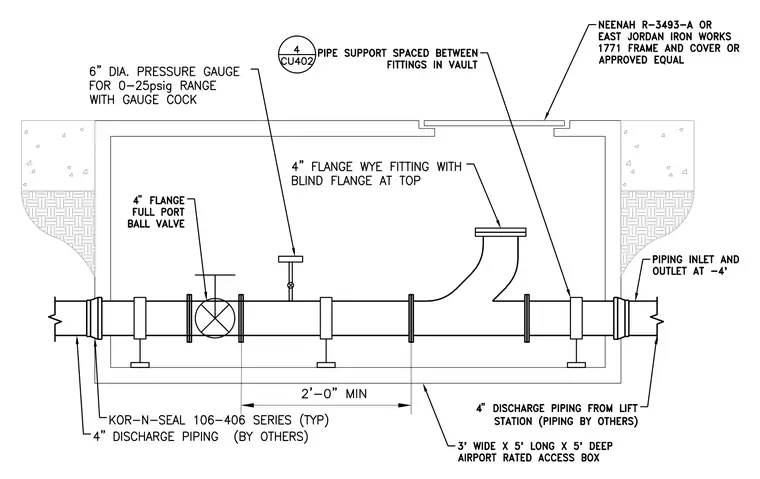

A three-foot wide by five-foot long by five-foot deep airport-rated access box houses a four-inch discharge piping run from a lift station. Piping enters and exits at negative four feet through Kor-N-Seal 106-406 series flexible boot connectors. The interior assembly includes a four-inch flanged full port ball valve, a six-inch diameter pressure gauge for zero to twenty-five psig range with a gauge cock, pipe supports spaced between fittings, and a four-inch flanged wye fitting with a blind flange at the top. Access to the vault is provided by a Neenah R-3493-A or East Jordan Iron Works 1771 frame and cover.
