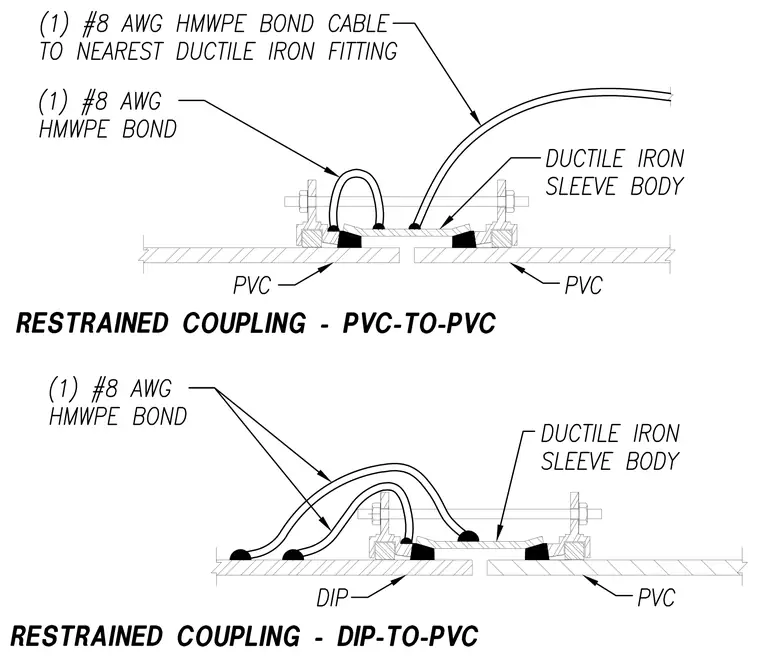

Two pipe coupling assemblies join PVC-to-PVC and ductile iron-to-PVC pipes using a ductile iron sleeve body and mechanical restraint glands. A single number 8 AWG high molecular weight polyethylene bond cable loops across the joint for electrical continuity, with one variation routing an additional bond cable to the nearest ductile iron fitting.
