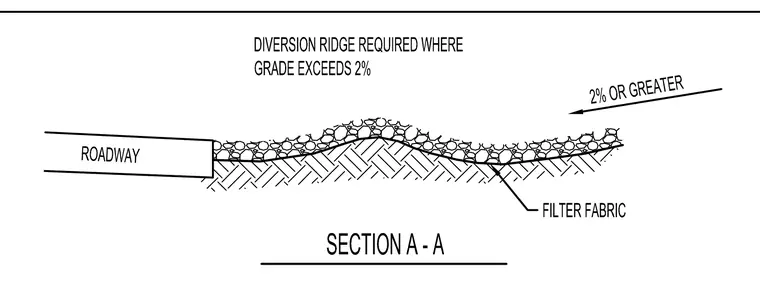

A diversion ridge is required where the roadway grade exceeds two percent to manage surface water runoff. A filter fabric layer is installed beneath the aggregate surface along the slope. The assembly interfaces directly with the roadway edge.
DIVERSION RIDGE REQUIRED WHERE GRADE EXCEEDS 2% ROADWAY SECTION A - A 2% OR GREATER FILTER FABRIC
