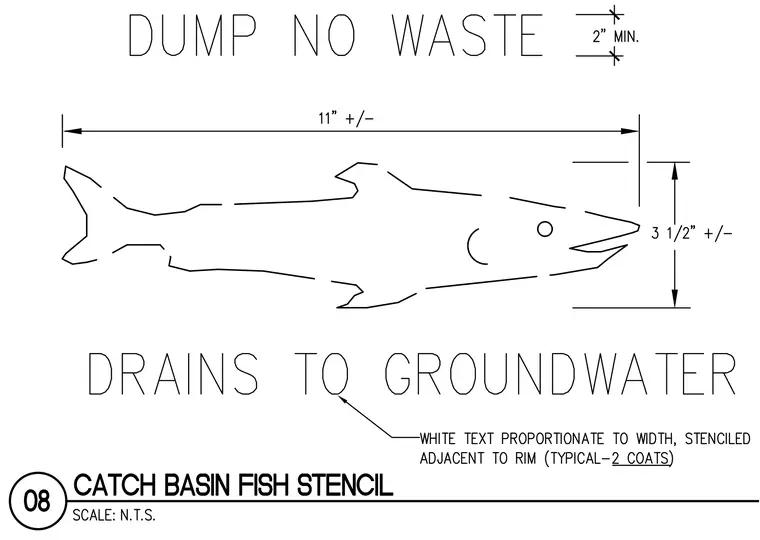

Required layout and dimensions for a catch basin environmental warning stencil. The assembly specifies two lines of text reading DUMP NO WASTE and DRAINS TO GROUNDWATER flanking a fish graphic. The graphic measures eleven inches plus or minus in length and three and one-half inches plus or minus in height with a minimum spacing of two inches. White text is proportioned to width and stenciled adjacent to the rim using two coats typically.
