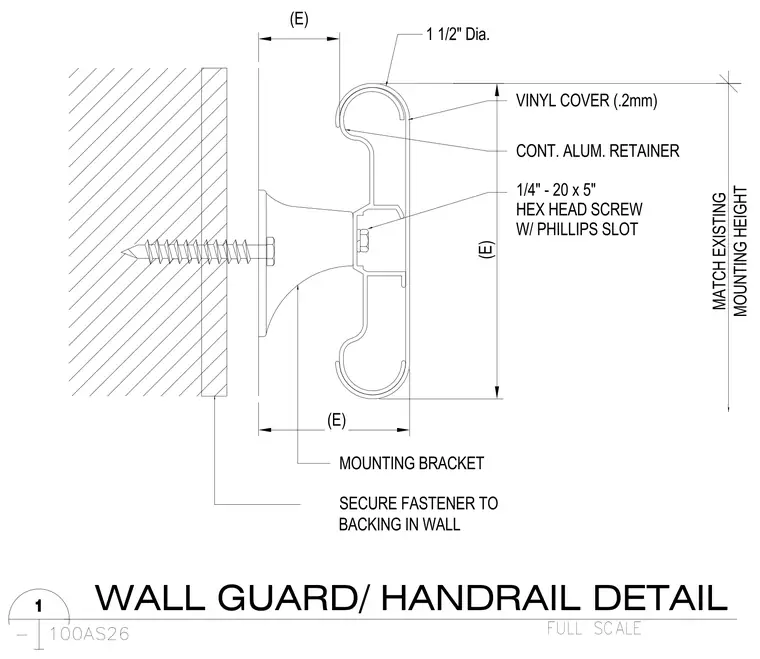

This wall guard and handrail detail features a continuous aluminum retainer encased in a 0.2mm vinyl cover with a one and a half inch diameter profile. The assembly is supported by a mounting bracket secured with a one-quarter inch by twenty by five inch hex head screw with a Phillips slot. Fasteners anchor through the mounting bracket into the wall backing, maintaining existing mounting heights.
MATCH EXISTING MOUNTING HEIGHT WALL GUARD/ HANDRAIL DETAIL CONT. ALUM. RETAINER 1 1/2" Dia. 1/4" - 20 x 5" HEX HEAD SCREW W/ PHILLIPS SLOT VINYL COVER (.2mm) MOUNTING BRACKET BACKING IN WALL SECURE FASTENER TO FULL SCALE 1 - 100AS26 (E) (E) (E)
