Civil · C-P4QEK

Driveway Approach and Sidewalk Standard Drawing

About this detail

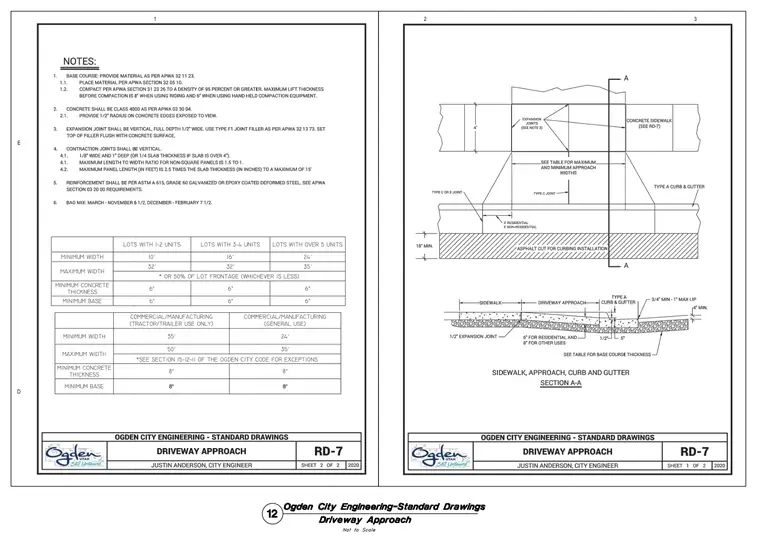

A concrete driveway approach, sidewalk, curb, and gutter assembly requires specific layout and construction methods. Plan and section views indicate typical dimensions, including a four-foot sidewalk width, three-foot residential and five-foot non-residential approach flares, and an eighteen-inch minimum asphalt cut for curbing installation. Expansion joints, contraction joints, and Type A, C, or E joint locations are specified along the transition zones. Concrete thickness, base course materials, and compaction requirements are outlined in the accompanying notes and tables for varying lot unit counts and commercial usage categories. A three-quarter-inch to one-inch maximum lip is detailed at the gutter interface.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
