Civil · C-P4HBK

Van Accessible Parking Sign Assembly

Materials

Elements

About this detail

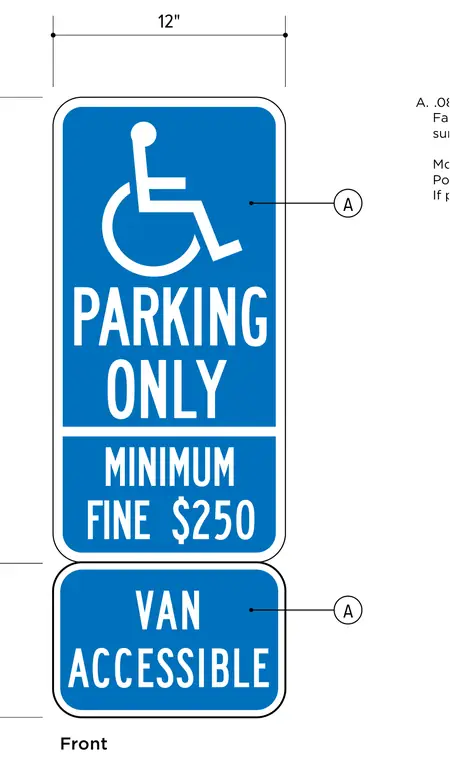

An .080-inch aluminum panel is surface painted satin white on the front and back, featuring a full application of 3M reflective white vinyl with surface-applied 3M reflective vinyl copy and graphics. The assembly includes a main parking sign and a supplementary van accessible panel below, dimensioned at 12 inches wide. Mounting options include post or wall installation, with posts, caps, and hardware painted silver.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
