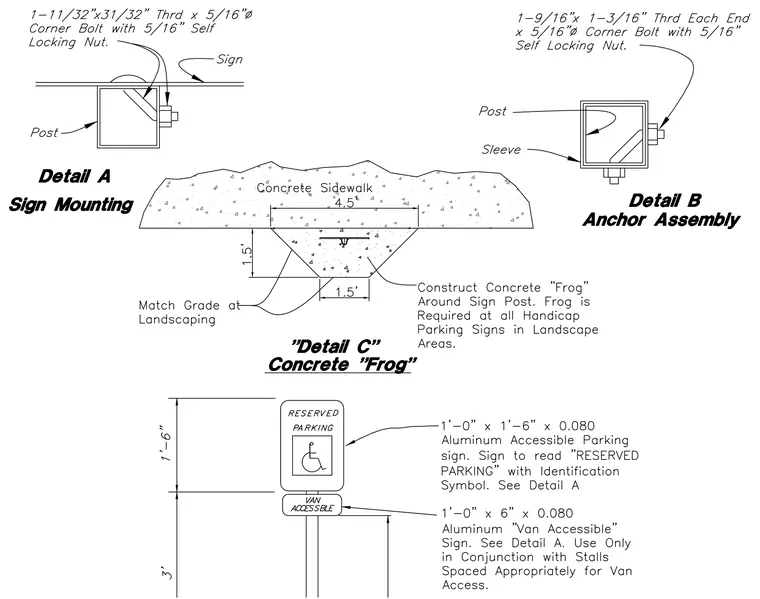

Sign post mounting assembly details for accessible parking areas include a sign post secured with corner bolts and self-locking nuts, an anchor assembly with a sleeve, and a concrete frog foundation at sidewalk and landscape transitions. The concrete frog requires a 4.5-foot wide top tapering to a 1.5-foot width with a depth of 1.5 feet, matching the adjacent landscaping grade. Signage comprises a 1-foot by 1-foot-6-inch by 0.080-inch aluminum reserved parking sign mounted above a 1-foot by 6-inch by 0.080-inch van accessible plaque.
