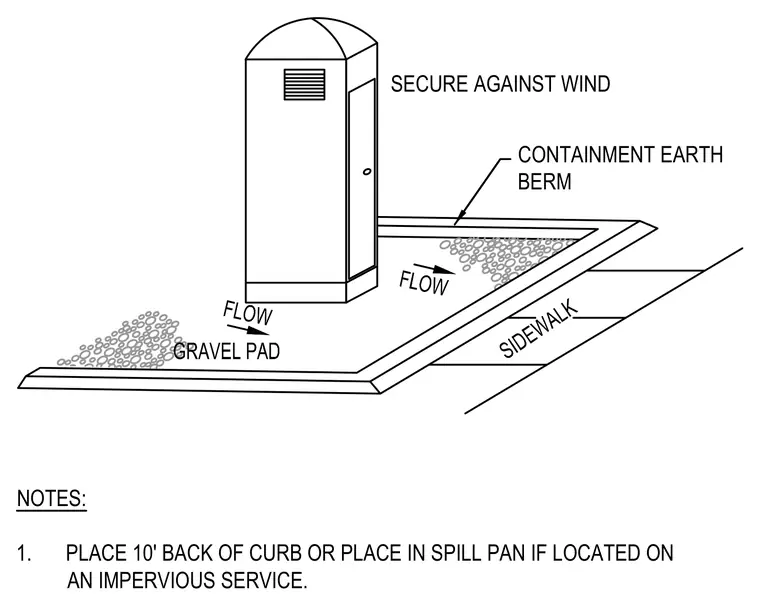

A portable toilet is positioned on a gravel pad adjacent to a sidewalk and surrounded by a containment earth berm. The unit must be secured against wind loads. Placement requires maintaining a distance of ten feet back from the curb, or alternatively placing the unit in a spill pan if located on an impervious surface.
GRAVEL PAD FLOW SIDEWALK FLOW SECURE AGAINST WIND CONTAINMENT EARTH BERM NOTES: 1. PLACE 10' BACK OF CURB OR PLACE IN SPILL PAN IF LOCATED ON AN IMPERVIOUS SERVICE.
