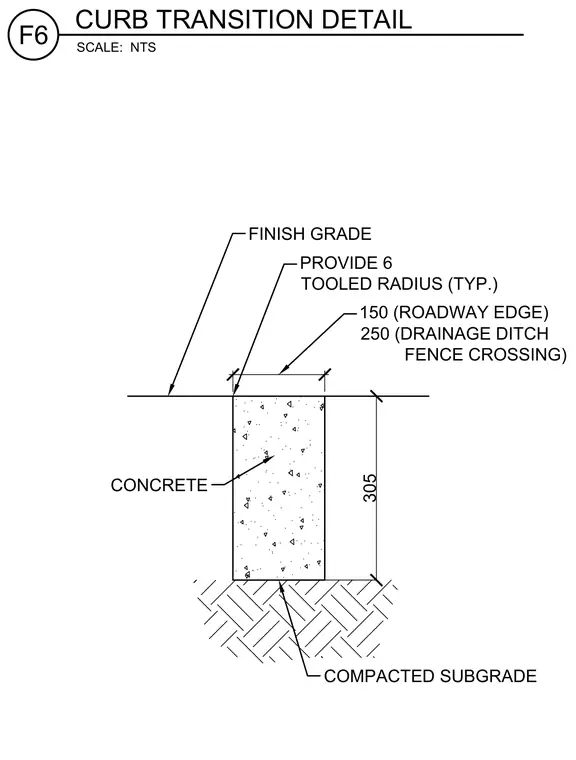

A concrete curb transition bears on a compacted subgrade. The concrete section features a 6-inch tooled radius typically applied at corners. Dimensions indicate a height of 305 millimeters with varying widths of 150 millimeters at roadway edges and 250 millimeters at drainage ditch fence crossings.
150 305 PROVIDE 6 TOOLED RADIUS (TYP.) FINISH GRADE CONCRETE COMPACTED SUBGRADE CURB TRANSITION DETAIL F6 SCALE: NTS 150 (ROADWAY EDGE) 250 (DRAINAGE DITCH FENCE CROSSING)
