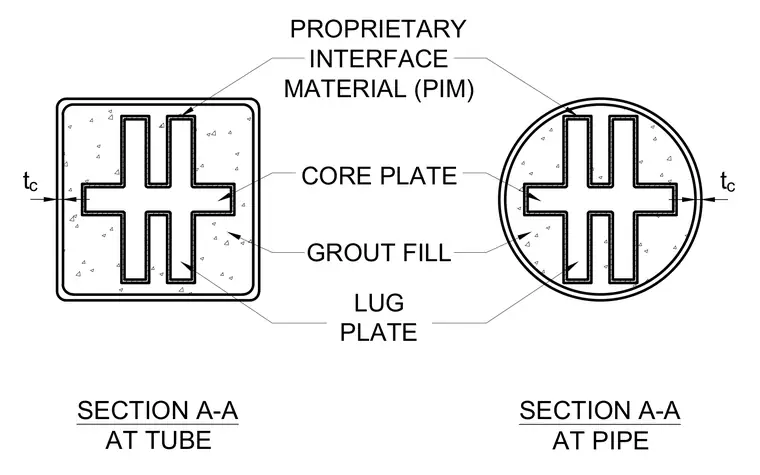

The assembly comprises a steel core plate and lug plates encased within a structural tube or pipe, with a proprietary interface material and grout fill surrounding the plates. Dimension tc indicates the clearance or thickness at the section boundary.
LUG PLATE PROPRIETARY INTERFACE MATERIAL (PIM) t c t c GROUT FILL CORE PLATE SECTION A-A AT TUBE SECTION A-A AT PIPE
