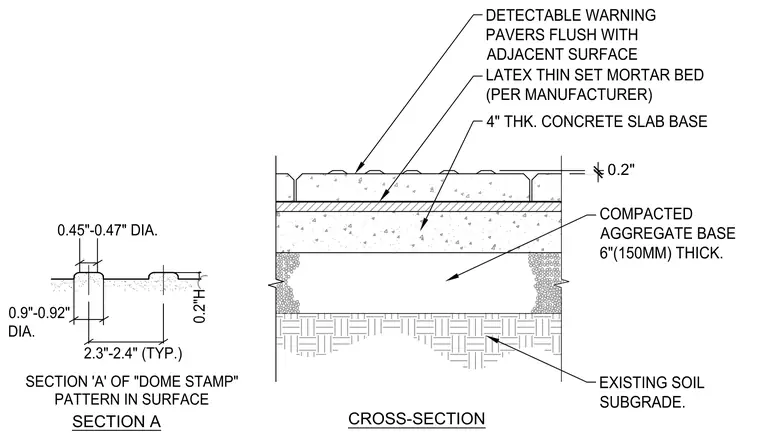

Detectable warning pavers sit flush with the adjacent surface, bedded in a latex thin-set mortar per the manufacturer's specifications. The wearing course is supported by a four-inch thick concrete slab base. Below the concrete slab, a six-inch thick compacted aggregate base rests on the existing soil subgrade. A detail shows the dome stamp pattern dimensions with 0.45- to 0.47-inch diameter domes, 0.9- to 0.92-inch diameter bases, 0.2-inch height, and typical 2.3- to 2.4-inch spacings.
0.45"-0.47" DIA. 2.3"-2.4" (TYP.) 0.2"H 0.9"-0.92" DIA. SECTION 'A' OF "DOME STAMP" PATTERN IN SURFACE SECTION A 0.2" . DETECTABLE WARNING PAVERS FLUSH WITH ADJACENT SURFACE LATEX THIN SET MORTAR BED (PER MANUFACTURER) 4" THK. CONCRETE SLAB BASE COMPACTED AGGREGATE BASE 6"(150MM) THICK. EXISTING SOIL SUBGRADE. CROSS-SECTION
