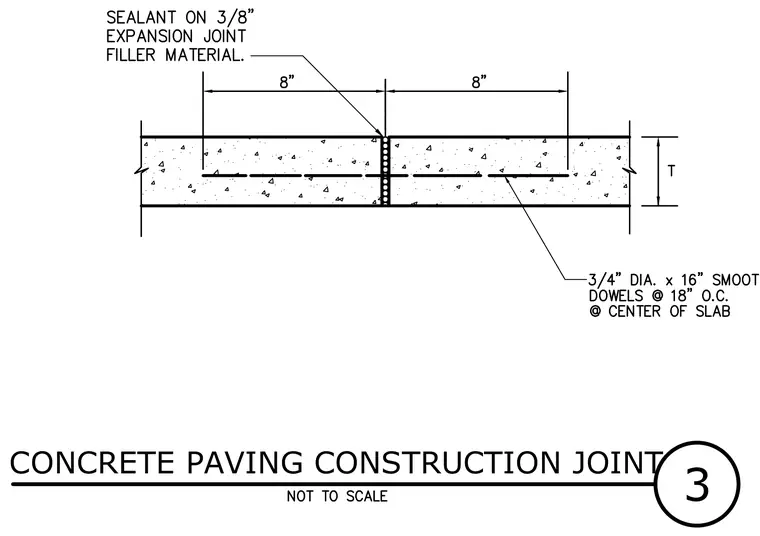

A concrete paving construction joint is formed with three-quarter-inch diameter by sixteen-inch smooth dowels placed at eighteen inches on center at the center of the slab. The joint is filled with a three-eighths-inch expansion joint filler material topped with sealant. The slab thickness is designated as T.
