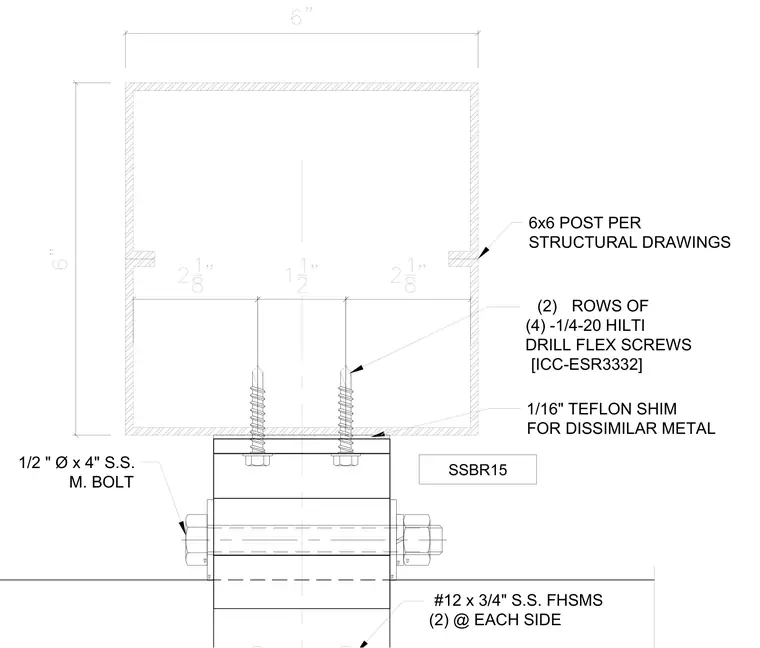

A six-inch by six-inch hollow structural section post connects to the support assembly using two rows of four one-quarter-inch by twenty Hilti Drill Flex screws. A one-sixteenth-inch Teflon shim is provided between the metal components to isolate dissimilar metals. The lower connection uses a one-half-inch diameter by four-inch stainless steel machine bolt with stainless steel flat head machine screws secured at each side.
6x6 POST PER STRUCTURAL DRAWINGS 1/16" TEFLON SHIM FOR DISSIMILAR METAL 1/2 1/2 1/2 1/2 1/2 #12 x 3/4" S.S. FHSMS (2) @ EACH SIDE SSBR15 1/2 " Ø x 4" S.S. M. BOLT (2) ROWS OF (4) -1/4-20 HILTI DRILL FLEX SCREWS [ICC-ESR3332]
