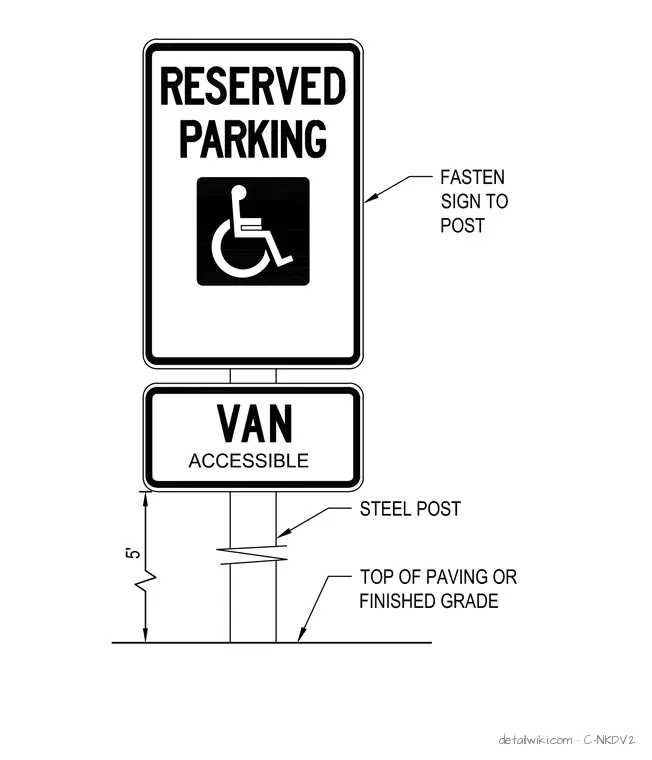

This assembly features a standard Manual on Uniform Traffic Control Devices R7-8 reserved parking sign paired with an R7-8p van accessible plaque. The signs are fastened to a steel post which is set into the ground. The bottom of the van accessible plaque is positioned at a height of five feet above the top of paving or finished grade.
