Civil · C-NJ65W

Cleanout Detail

Materials

Elements

About this detail

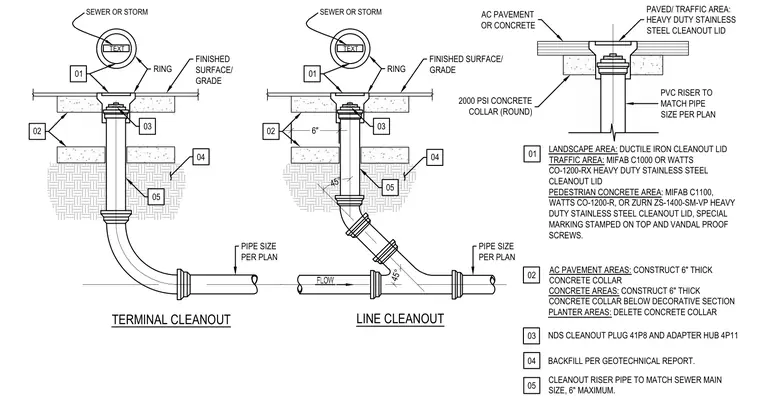

Terminal and line cleanouts for sewer or storm drainage systems are set flush with finished grade across various surface types. The assembly incorporates a PVC riser pipe sized per plan matching the sewer main up to a maximum of six inches, connected via an NDS cleanout plug 41P8 and adapter hub 4P11. Surface treatments vary by location: landscape areas receive a ductile iron cleanout lid, traffic areas use a heavy-duty stainless steel lid such as Mifab C1000 or Watts CO-1200-RX, and pedestrian concrete areas use a heavy-duty stainless steel lid with vandal-proof screws and special marking such as Mifab C1100, Watts CO-1200-R, or Zurn ZS-1400-SM-VP. AC pavement and concrete areas feature a six-inch thick, two thousand PSI round concrete collar, while planter areas omit the collar entirely. Backfill is placed per the geotechnical report.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
