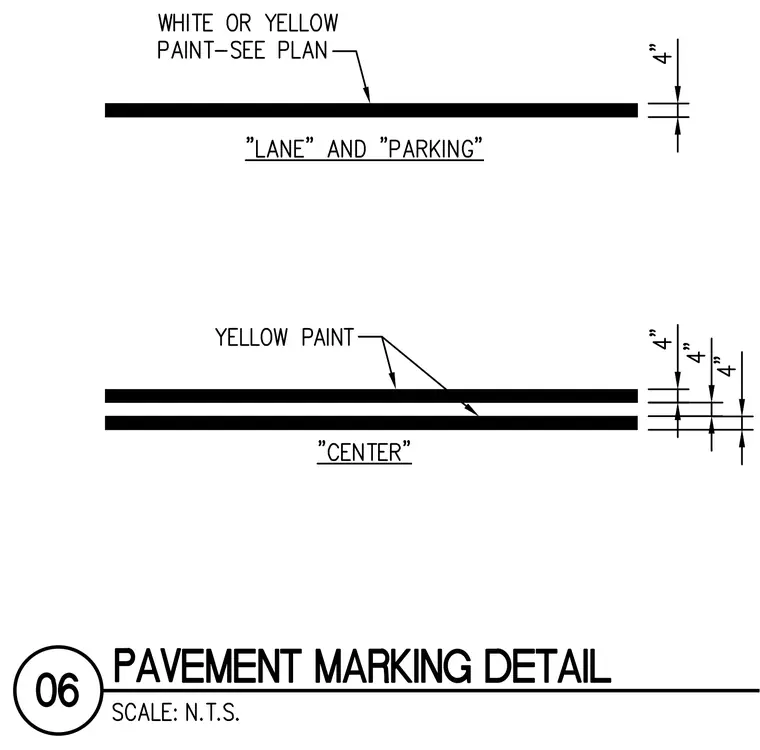

Lane and parking stripe configurations consist of a single four-inch-wide line painted white or yellow as specified on the plan. Centerline configurations consist of parallel lines with four-inch widths and spacings marked in yellow paint.
