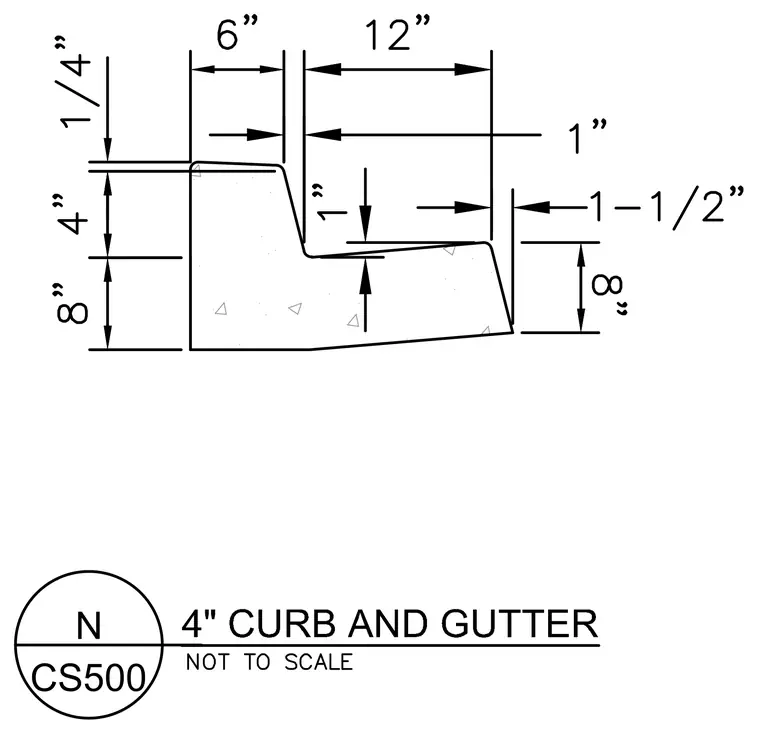

A standard concrete curb and gutter profile features clearly defined dimensional callouts. The vertical curb face stands with an eight-inch height and a twelve-inch gutter pan width sloping toward the flowline. Additional height dimensions include a four-inch vertical face section and a quarter-inch top slope. Horizontal dimensions specify six inches for the curb width and one and a half inches for the outer edge.
