Precast Concrete Wheel Stop Detail

Materials

Elements

About this detail

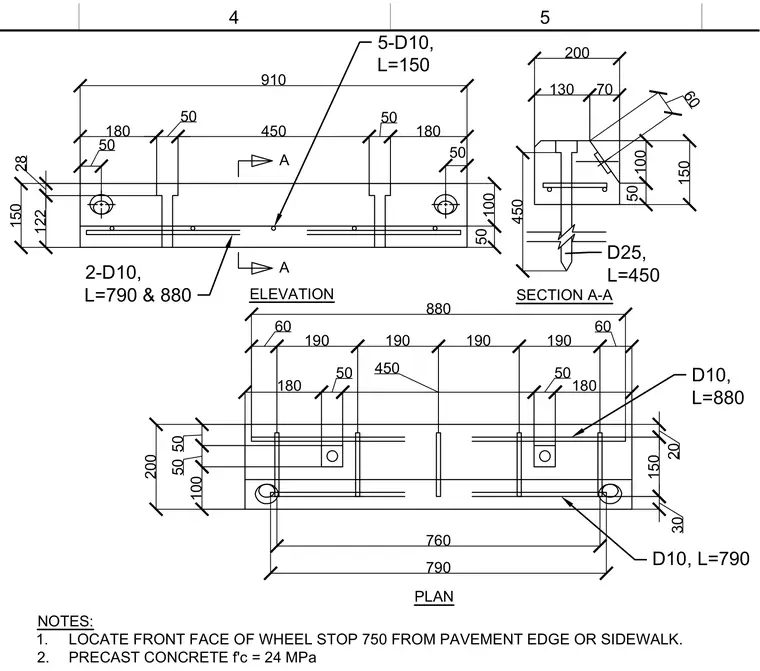

A precast concrete wheel stop features a concrete compressive strength of 24 MPa. The unit is reinforced with multiple D10 steel reinforcing bars, including two bars of lengths 790 and 880 millimeters, five transverse bars of length 150 millimeters, and additional longitudinal bars measuring 790 and 880 millimeters. Anchoring is provided by D25 anchor dowels of 450 millimeter length embedded into the pavement. Installation notes specify locating the front face of the wheel stop 750 millimeters from the pavement edge or sidewalk.
