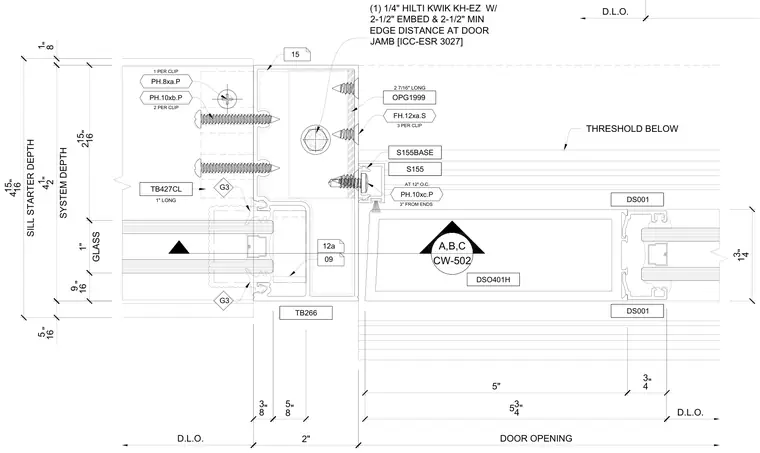

An aluminum swing-out door jamb connects to the adjacent CW-502 curtain wall framing system using mechanical fasteners. One one-quarter inch Hilti Kwik KH-EZ screw with a two-and-one-half-inch embedment and two-and-one-half-inch minimum edge distance anchors the door jamb at the header and jamb connections per ICC-ESR 3027. Multiple screw fasteners including PH.8xa.P, PH.10xb.P, and FH.12xa.S secure clips and components with specified lengths such as two-and-seven-sixteenths inches for OPG1999 and one inch for TB427CL. Base sections S155BASE and S155 attach alongside threshold components and DS001 door profiles. One-inch glass units maintain daylight opening dimensions with designated sill starter and system depths.
09 12a 1 PER CLIP PH.8xa.P 2 PER CLIP PH.10xb.P G3 3" FROM ENDS AT 12" O.C. PH.10xc.P 2" DOOR OPENING 53 4" 5" 3 4" D.L.O. D.L.O. 3 8" A,B,C CW-502 3 PER CLIP FH.12xa.S 15 THRESHOLD BELOW TB266 TB427CL 1" LONG S155 S155BASE DSO401H DS001 DS001 OPG1999 2 7/16" LONG (1) 1/4" HILTI KWIK KH-EZ W/ 2-1/2" EMBED & 2-1/2" MIN EDGE DISTANCE AT DOOR JAMB [ICC-ESR 3027] G3 D.L.O. 1 8 " 4 1 2 " SYSTEM DEPTH 5 16 " 4 15 16 " SILL STARTER DEPTH 2 15 16 " 1" GLASS 9 16 " 1 3 4 " 5 8"
