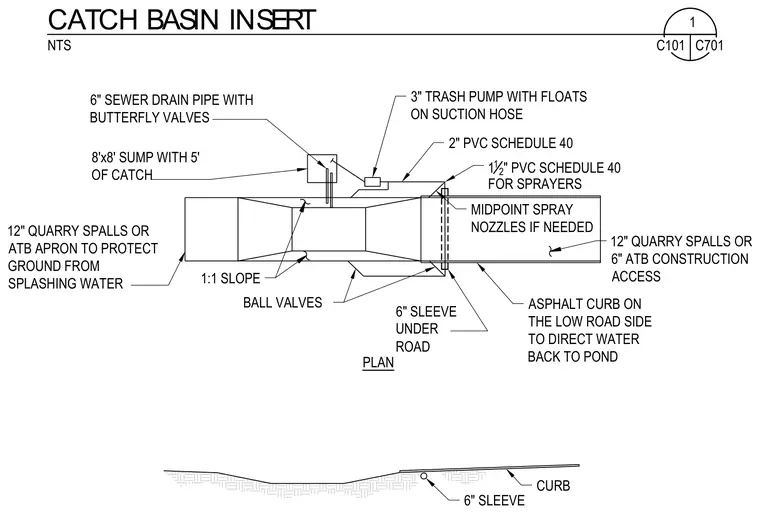

The assembly features an eight-foot by eight-foot sump with five feet of catch connected to a six-inch sewer drain pipe equipped with butterfly valves and ball valves. A three-inch trash pump with floats on a suction hose connects to a two-inch polyvinyl chloride schedule forty pipe and a one-and-a-half-inch polyvinyl chloride schedule forty pipe for sprayers, including midpoint spray nozzles if needed. A six-inch sleeve runs under the road, flanked by twelve-inch quarry spalls or asphalt-treated base aprons to protect the ground from splashing water, alongside an asphalt curb on the low road side to direct water back to the pond.
CATCH BASIN INSERT NTS PLAN 8'x8' SUMP WITH 5' OF CATCH 3" TRASH PUMP WITH FLOATS ON SUCTION HOSE 2" PVC SCHEDULE 40 1 12 " PVC SCHEDULE 40 FOR SPRAYERS MIDPOINT SPRAY NOZZLES IF NEEDED 12" QUARRY SPALLS OR 6" ATB CONSTRUCTION ACCESS ASPHALT CURB ON THE LOW ROAD SIDE TO DIRECT WATER BACK TO POND 6" SLEEVE UNDER ROAD BALL VALVES 1:1 SLOPE 12" QUARRY SPALLS OR ATB APRON TO PROTECT GROUND FROM SPLASHING WATER 6" SEWER DRAIN PIPE WITH BUTTERFLY VALVES 6" SLEEVE CURB 1 C101 C701
