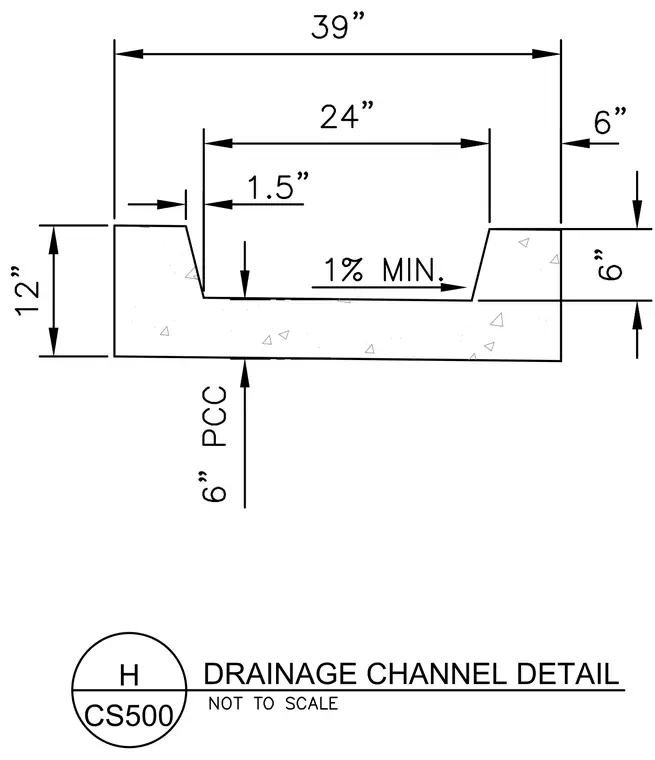

This cast-in-place Portland cement concrete drainage channel features a total outside width of 39 inches, an interior channel width of 24 inches, and a 1.5-inch top flare on the inner walls. The channel has a total depth of 12 inches with a 6-inch thick base slab and 6-inch high interior walls, incorporating a 1-percent minimum drainage slope across the bottom invert.
