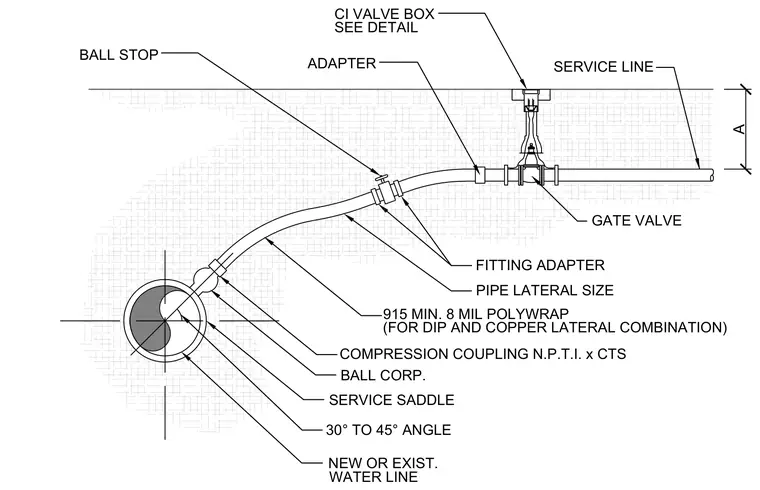

A service saddle is mounted onto a new or existing water line with a thirty to forty-five degree angle orientation. A ball corporation stop connects to the service saddle via a compression coupling. The pipe lateral extends from the corporation stop through an eight-mil polywrap, which is specified for ductile iron pipe and copper lateral combinations. Fitting adapters and an adapter connect the lateral to a gate valve with a cast iron valve box. A ball stop is installed along the lateral line preceding the valve assembly.
BALL STOP ADAPTER SERVICE LINE GATE VALVE FITTING ADAPTER PIPE LATERAL SIZE CI VALVE BOX SEE DETAIL COMPRESSION COUPLING N.P.T.I. x CTS NEW OR EXIST. WATER LINE 30° TO 45° ANGLE SERVICE SADDLE 915 MIN. 8 MIL POLYWRAP (FOR DIP AND COPPER LATERAL COMBINATION) BALL CORP. A
