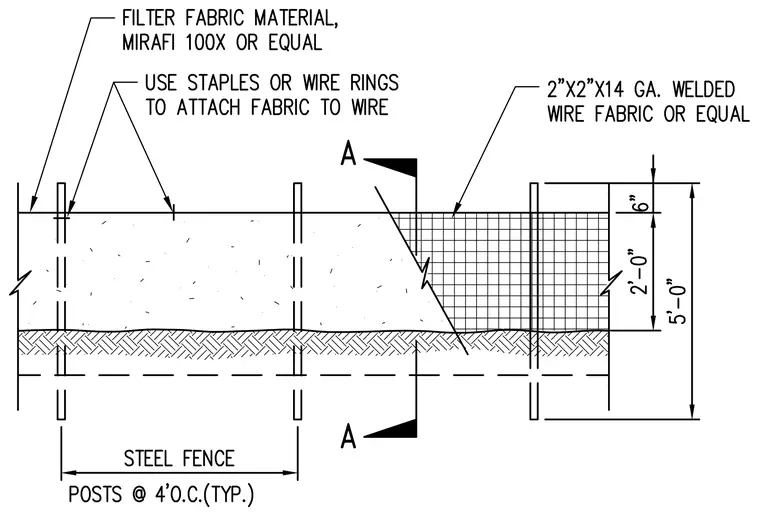

Filter fabric material such as Mirafi 100X or equal is secured to a backing of 2 inches by 2 inches by fourteen gauge welded wire fabric or equal using staples or wire rings. The welded wire fabric is supported by steel fence posts spaced at four feet on center typical. The total height of the assembly is five feet, with two feet of fabric height and six inches of top extension shown, while posts extend below grade.
