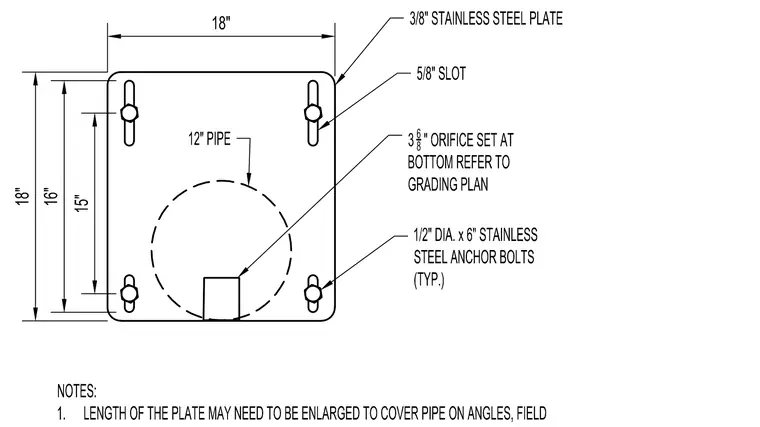

An eighteen-inch square by three-eighths-inch thick stainless steel plate fits over a twelve-inch pipe opening. Four five-eighths-inch vertical slots accommodate one-half-inch diameter by six-inch stainless steel anchor bolts typically positioned at fifteen and sixteen inches on center. A three-and-five-eighths-inch orifice is set at the bottom of the plate, with note instructions indicating the plate length may need enlargement in the field to cover pipes installed on angles.
NOTES: 1. LENGTH OF THE PLATE MAY NEED TO BE ENLARGED TO COVER PIPE ON ANGLES, FIELD 3 6 8 " ORIFICE SET AT BOTTOM REFER TO GRADING PLAN 18" 15" 16" 18" 3/8" STAINLESS STEEL PLATE 5/8" SLOT 1/2" DIA. x 6" STAINLESS STEEL ANCHOR BOLTS (TYP.) 12" PIPE
