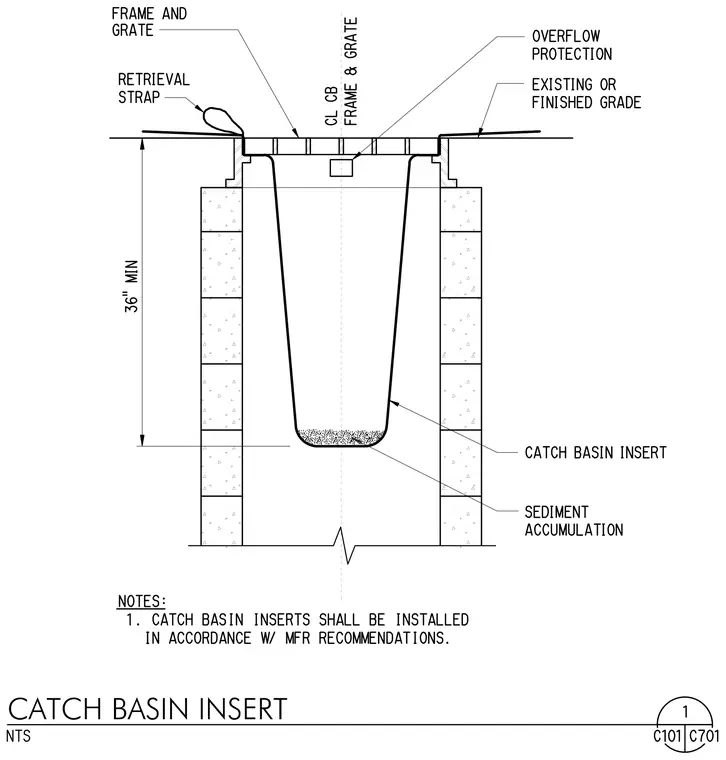

A catch basin insert is suspended within a concrete masonry unit drainage structure below existing or finished grade. The insert hangs from the frame and grate assembly, featuring an integrated retrieval strap and overflow protection openings near the top. A minimum depth of thirty-six inches is maintained from the top of the frame to the bottom interior of the structure. Sediment accumulates at the bottom of the hanging insert bag during operation. The installation must follow manufacturer recommendations.
