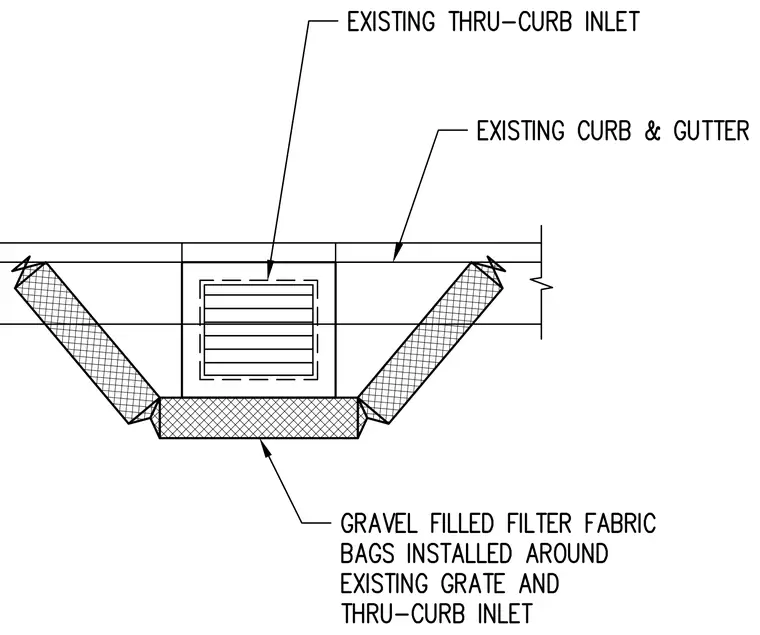

Gravel-filled filter fabric bags are installed around an existing thru-curb inlet and existing curb and gutter for temporary sediment and erosion control. The filter bags are arranged in a trapezoidal configuration encompassing the drainage inlet to capture sediment before runoff enters the storm drainage system.
