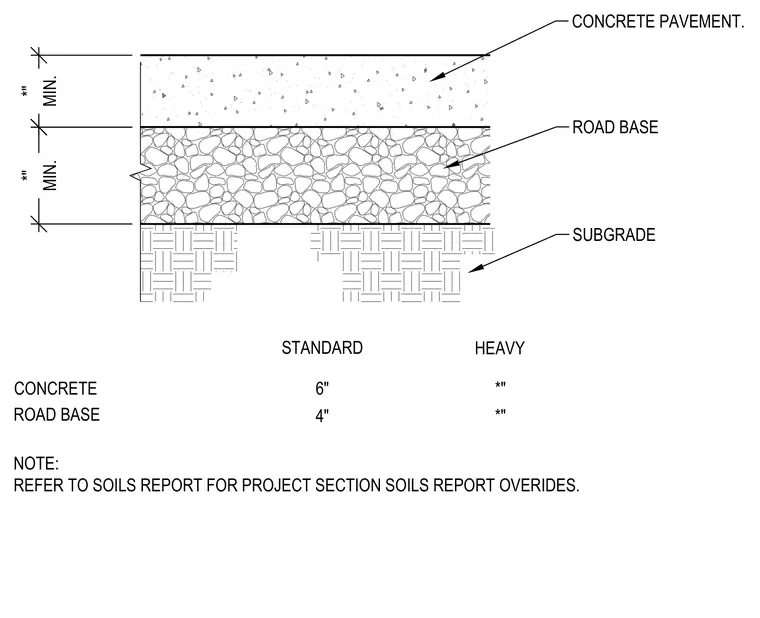

This concrete pavement assembly consists of a concrete pavement slab bearing on a road base layer, which in turn rests on a prepared subgrade. A schedule below indicates standard and heavy duty thicknesses, requiring six inches of concrete and four inches of road base for standard applications. Project section requirements are subject to the project soils report, which overrides standard specifications.
*" MIN. NOTE: REFER TO SOILS REPORT FOR PROJECT SECTION SOILS REPORT OVERIDES. *" MIN. STANDARD CONCRETE HEAVY ROAD BASE CONCRETE PAVEMENT. SUBGRADE ROAD BASE 6" 4" *" *"
