Civil · C-MTYN5

Inlet Protection

Materials

Steel Glass / Glazing Metal (misc.)

Elements

Site / Paving Reinforcing Roof / Floor Openings

Connections

Welded Connection

About this detail

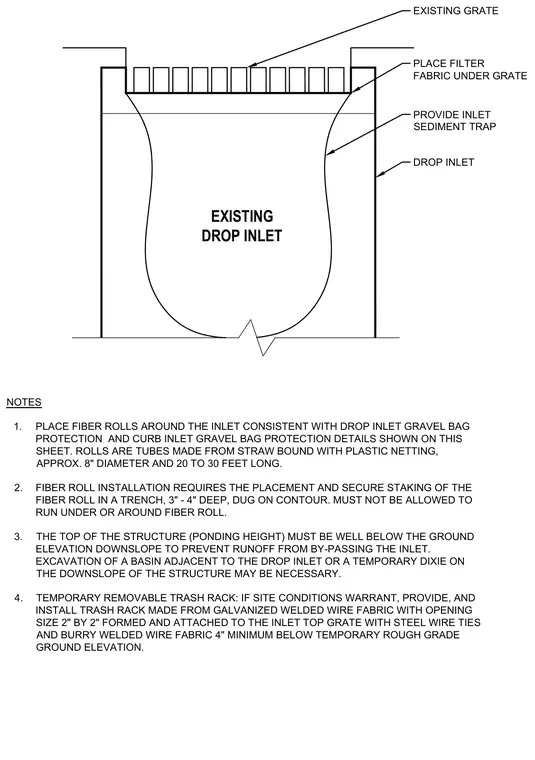

Drop inlet protection measures implemented on an existing drop inlet structure. Filter fabric is placed directly beneath the existing grate while an inlet sediment trap hangs within the structure. Accompanying notes specify installation guidelines for fiber rolls around the inlet, proper ponding height relative to downslope ground elevation, and requirements for a temporary removable trash rack made from galvanized welded wire fabric.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
