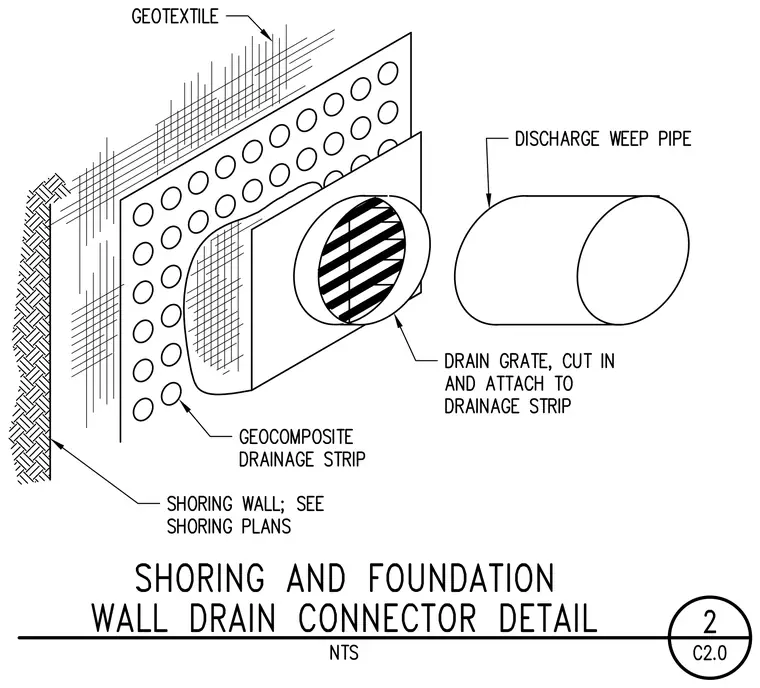

A geocomposite drainage strip is installed against the shoring wall and wrapped with geotextile fabric. A drain grate is cut into and attached to the drainage strip to tie into a discharge weep pipe.
