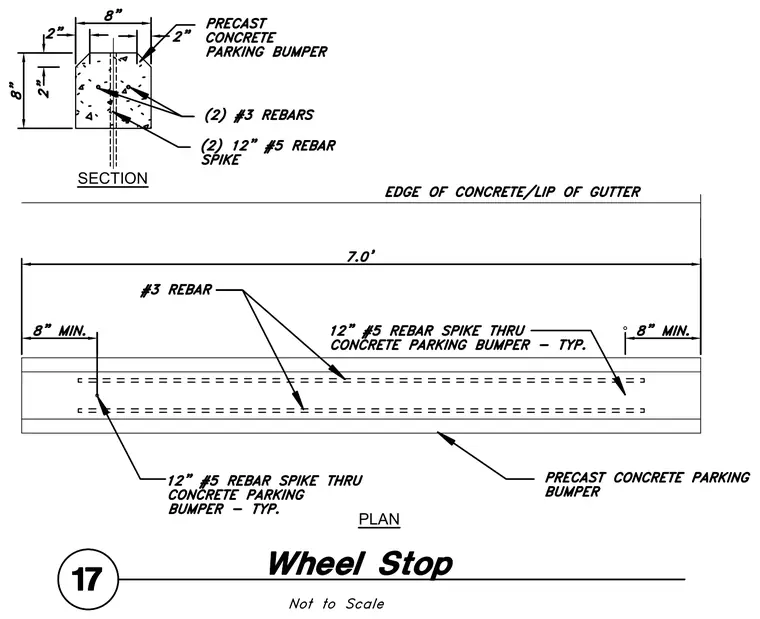

This precast concrete parking bumper measures eight inches wide by eight inches high with chamfered top corners. Internal reinforcement consists of two continuous number three rebars running longitudinally through the section. The bumper is anchored to the pavement using two twelve-inch number five rebar spikes driven vertically through preformed vertical holes. The overall length of the parking stop is seven feet with the end spikes placed eight inches minimum from each end.
