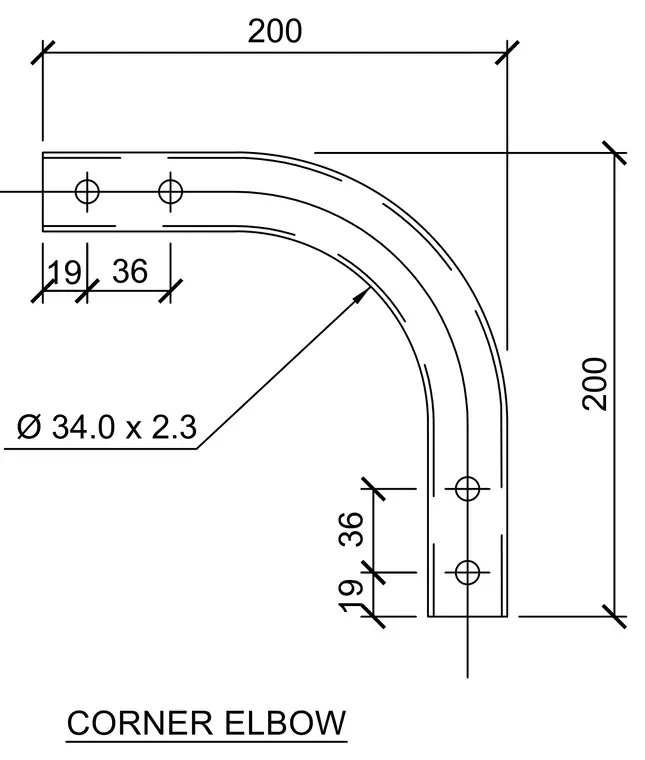

A corner elbow pipe fitting features an outer diameter of thirty-four millimeters and a wall thickness of 2.3 millimeters, with overall dimensions measuring two hundred by two hundred millimeters. Each leg includes two fastening holes spaced thirty-six millimeters apart with a nineteen millimeter edge distance.
