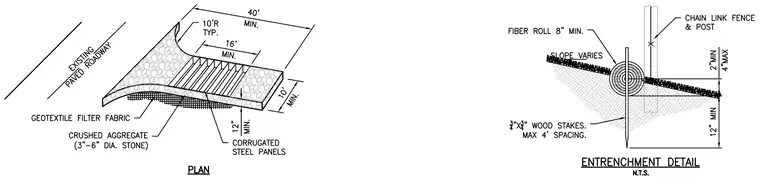

A stabilized construction entrance pad connects an existing paved roadway with a minimum forty-foot length and sixteen-foot minimum width, constructed with twelve inches minimum of three to six inch crushed aggregate over geotextile filter fabric and corrugated steel panels. A chain link fence and post includes an eight-inch minimum fiber roll entrenchment detail with three-quarter by three-quarter inch wood stakes at a maximum four-foot spacing.
