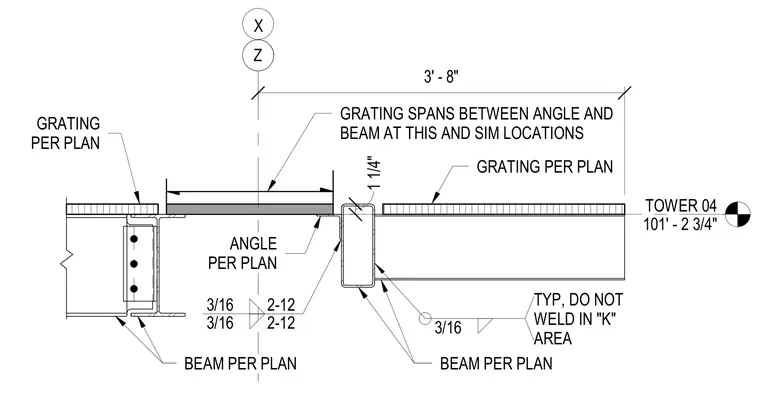

Metal grating spans between a supporting steel angle and a structural steel beam, with a three-foot-eight-inch clear span. The support angle is welded to the web of the steel beam with three-sixteenth-inch fillet welds spaced at two inches on center typical, while keeping welds out of the beam k-area. Grating units are sized per plan and bear on the steel angle and beam flange.
Z TOWER 04 101' - 2 3/4" ANGLE PER PLAN 1 1/4" 3/16 2-12 3/16 2-12 GRATING PER PLAN 3/16 TYP, DO NOT WELD IN "K" AREA BEAM PER PLAN BEAM PER PLAN GRATING SPANS BETWEEN ANGLE AND BEAM AT THIS AND SIM LOCATIONS 3' - 8" GRATING PER PLAN X
