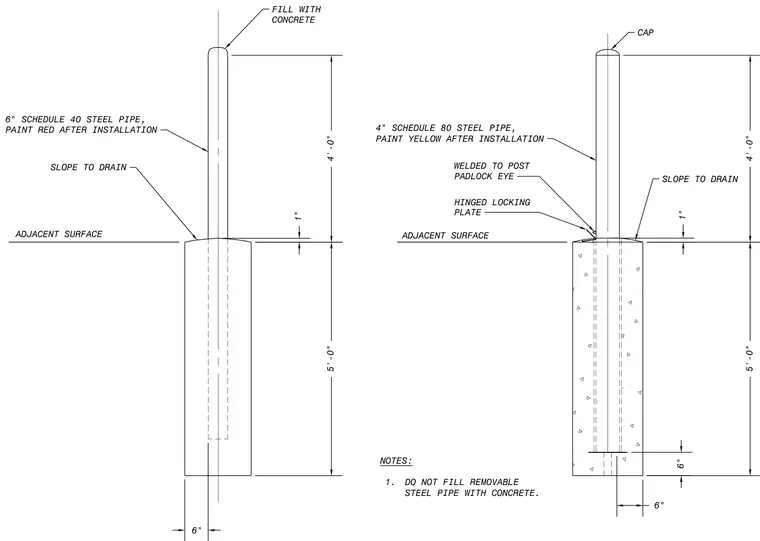

A removable bollard assembly embedded in a concrete foundation sleeve. The sleeve consists of a six-inch schedule forty steel pipe, painted red after installation and filled with concrete, extending five feet below the adjacent surface. The removable post is constructed from a four-inch schedule eighty steel pipe, painted yellow after installation, extending four feet above the finished surface and topped with a cap. A hinged locking plate with a welded padlock eye secures the removable pipe in place. The surrounding concrete is sloped to drain away from the post.
ADJACENT SURFACE 4" SCHEDULE 80 STEEL PIPE, PAINT YELLOW AFTER INSTALLATION 5'-0" 4'-0" HINGED LOCKING PLATE 1" CAP 6" SLOPE TO DRAIN WELDED TO POST PADLOCK EYE 6" NOTES: 1. DO NOT FILL REMOVABLE STEEL PIPE WITH CONCRETE. 6" SCHEDULE 40 STEEL PIPE, PAINT RED AFTER INSTALLATION 5'-0" 4'-0" SLOPE TO DRAIN 1" FILL WITH CONCRETE 6" ADJACENT SURFACE I I T T <3 <3 <3 l> <7 t> <3 <3 o 3 <3 t> I ____ I i <3 <3 i T
